How Stamping Part Hinges Transform Industrial Applications

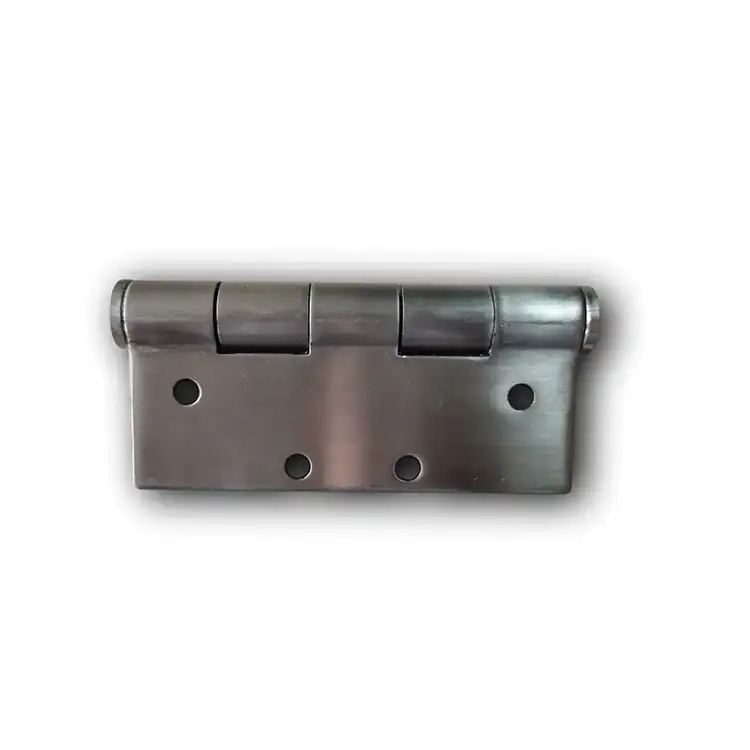

Stamping part hinges are precision-engineered components designed to provide smooth rotational movement between two connected parts while maintaining structural integrity. These hinges are manufactured through a high-precision metal stamping process, which involves shaping flat metal sheets into desired hinge forms using specialized dies and presses. This manufacturing approach ensures uniformity, accuracy, and durability, making stamping part hinges an essential solution across multiple industries.

Key Benefits of Stamping Part Hinges

• High Precision: Consistent quality ensured by automated stamping tools.

• Mass Production Capability: Ideal for large-scale manufacturing with minimal defects.

• Material Flexibility: Supports stainless steel, carbon steel, aluminum, brass, and copper.

• Corrosion Resistance: Advanced coatings or plating enhance long-term durability.

• Customizable Designs: Options available for size, thickness, and surface finish.

How Stamping Part Hinges Are Manufactured

The metal stamping process combines precision engineering with cutting-edge technology to achieve highly durable and uniform hinges. The process typically follows these stages:

Step 1: Material Selection

Choosing the right raw material is crucial to ensure optimal hinge performance. Commonly used materials include:

• Stainless Steel (304/316): Excellent corrosion resistance for outdoor and marine applications.

• Carbon Steel: High strength and cost-effective for industrial equipment.

• Aluminum Alloy: Lightweight and ideal for electronics or aerospace.

• Brass & Copper: Aesthetic appeal with good electrical conductivity.

Step 2: Stamping and Forming

The selected material is fed into high-speed stamping presses equipped with custom dies. Using controlled pressure, the machine punches, bends, and forms the raw sheet into the precise hinge shape.

Step 3: Secondary Processes

After initial forming, several secondary processes enhance the hinge's mechanical properties and visual appearance:

• Deburring: Removes sharp edges to improve safety.

• Heat Treatment: Increases strength and wear resistance.

• Plating & Coating: Options include zinc plating, black oxide, nickel coating, and powder finishing.

• Welding & Riveting: For assemblies requiring multiple hinge sections.

Step 4: Quality Inspection

Every stamping part hinge undergoes rigorous testing to ensure compliance with ISO 9001 quality standards. Parameters like thickness, hole alignment, bending angle, and load-bearing capacity are carefully verified.

Product Specifications and Applications

To help you better understand our stamping part hinges, here’s a detailed parameter table showcasing the most common specifications:

Industries That Rely on Stamping Part Hinges

• Automotive: Used in car doors, trunk lids, glove compartments, and engine covers.

• Aerospace: Lightweight aluminum hinges support high-stress applications.

• Consumer Electronics: Compact hinges used in laptops, tablets, and smart devices.

• Home Appliances: Found in washing machines, refrigerators, and microwave ovens.

• Construction Hardware: Doors, cabinets, and window frames rely on durable hinge systems.

How to Choose the Right Stamping Part Hinge

Selecting the correct hinge depends on several technical and functional considerations. Here's a checklist to guide you:

Define the Load Requirements

Understand the maximum weight the hinge must support. Overestimating load capacity ensures safety and prevents premature wear.

Match Material to Environment

• Outdoor Applications: Stainless steel or powder-coated carbon steel for corrosion resistance.

• Indoor Appliances: Zinc-plated carbon steel or brass for aesthetic value.

• High-Temperature Environments: Heat-treated alloys to avoid deformation.

Consider Dimensional Tolerances

For assemblies requiring high-precision fits, select hinges with tighter tolerances, typically ±0.05 mm.

Surface Treatment Options

The choice of finish impacts both functionality and appearance. For example, black oxide coatings offer enhanced wear resistance, while nickel plating provides a polished look.

Customization and OEM Support

Modern industries increasingly demand tailor-made solutions. OEM/ODM hinge production ensures compatibility with your specific product design.

Frequently Asked Questions

Q1: What is a stamping part hinge, and how is it different from a regular hinge?

A1: A stamping part hinge is produced using a metal stamping process, making it highly precise and consistent compared to traditional cast or forged hinges. It is lighter, more cost-effective, and suitable for large-scale applications across various industries.

Q2: How do I maintain stamping part hinges for long-term performance?

A2: Regular maintenance includes cleaning the surface, applying lubrication to pivot points, and checking for wear or corrosion. For outdoor environments, choose hinges with protective coatings like zinc or powder finishes to extend lifespan.

Stamping part hinges have become an indispensable mechanical component in industries demanding strength, precision, and durability. Their versatility makes them suitable for everything from heavy-duty automotive doors to miniaturized consumer electronics.

At GEYA, we specialize in producing high-quality stamping part hinges tailored to your specifications. Our commitment to precision manufacturing, strict quality control, and custom solutions ensures you receive products that meet the highest standards.

If you're seeking reliable, customized, and cost-effective stamping part hinge solutions, contact us today to discuss your project requirements and explore how GEYA can support your business.
