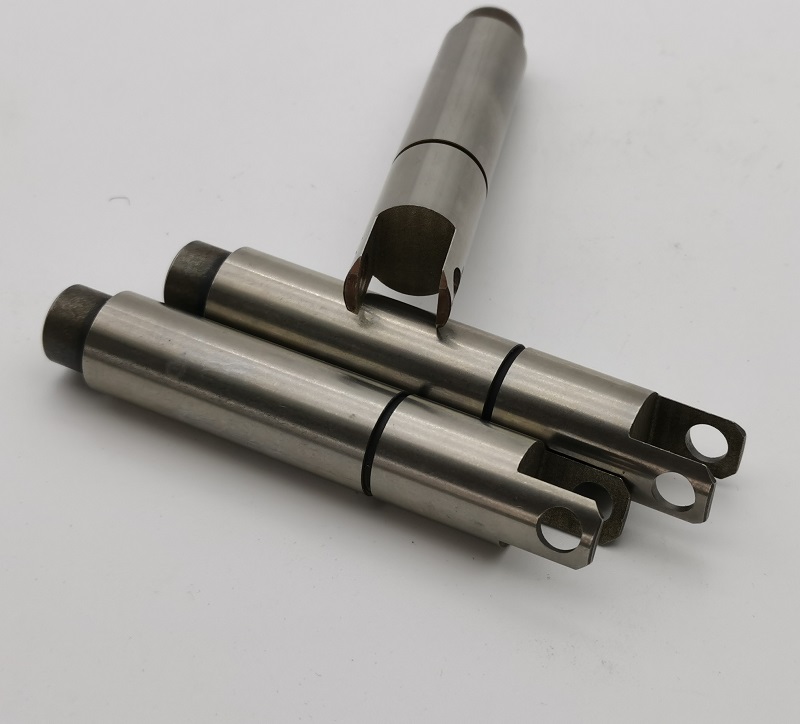

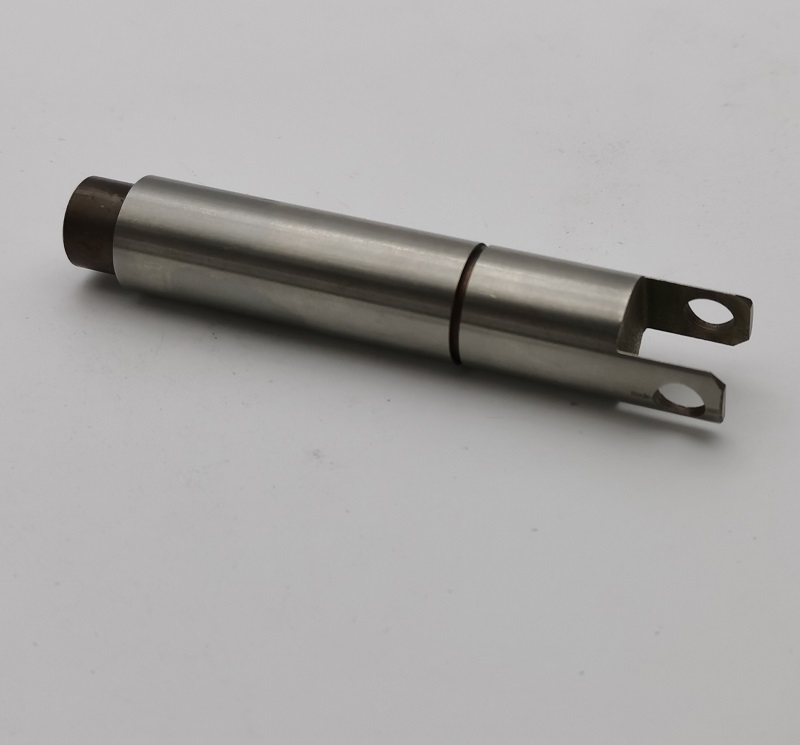

Custom 440C Stainless Steel Precision Medical Shaft CNC Machining

Custom 440C Stainless Steel Precision Medical Shaft CNC Machining This precision machined shaft is manufactured from premium AISI 440C stainless steel, specifically designed for high-performance medical and precision equipment applications. Combining CNC turning, milling, reaming, heat treatment, and precision grinding, the component achieves exceptional dimensional accuracy, wear resistance, and surface quality required by demanding OEM customers. Unlike conventional machined shafts, this component requires multiple critical manufacturing processes after heat treatment. The outside diameter is finish ground after hardening to achieve tight dimensional tolerance and excellent cylindricity, ensuring stable performance in precision assemblies. The part is heat treated to 53–58 HRC, providing superior hardness and wear resistance while maintaining dimensional stability during long-term operation. Precision reamed holes, milled slots, and geometric tolerances are carefully controlled using advanced CNC machining centers and precision inspection equipment. Every production batch undergoes complete dimensional inspection before shipment. Material certificates, inspection reports, and RoHS compliance documentation are available upon customer request.

Model:121660

Send Inquiry

Product Description

Manufacturing Process

CNC Turning

CNC Milling

Precision Drilling

Reaming

Heat Treatment (53–58 HRC)

Centerless Grinding

Deburring

100% Visual Inspection

Final Quality Inspection

Material

Material: AISI 440C Stainless Steel

Hardness: 53–58 HRC

Surface Roughness: Ra 0.8 μm

RoHS Compliant

Features

Excellent wear resistance

High hardness after heat treatment

Precision ground outside diameter

Tight dimensional tolerance

Precision reamed hole

Burr-free surface finish

Suitable for medical and precision equipment

Full material traceability

Inspection report supplied with each shipment

Applications

Medical Devices

Surgical Equipment

Precision Instruments

Automation Equipment

Analytical Instruments

Motion Control Systems

Laboratory Equipment

Why Choose Jinggang

Over 20 years of OEM machining experience

CNC turning and milling capability

Precision grinding after heat treatment

Coordinate Measuring Machine (CMM) inspection

IATF 16949 certified quality management

Custom manufacturing according to customer drawings

Flexible production from prototypes to mass production

CNC Machining or Not	Cnc Machining
Material Capabilities	Aluminum, Brass, Bronze, Copper, Stainless Steel, Steel Alloys

Other attributes

Place of Origin	Zhejiang, China
Type	DRILLING, Milling, Turning
Micro Machining or Not	Micro Machining
Model Number	121660
Brand Name	none
Materia	440c stainless steel
Product name	piston carrier
finish	passivate
Application	Medical Equipments

Packaging and delivery

Selling Units:	Single item
Single package size:	1. 6X1. 6X4. 6 cm
Single gross weight:	0. 054 kg

Product descriptions from the supplier

316 Stainless Steel Medical Machinery Part Filter Housing Finish Passivate

FAQ

Q: Can we send a sample for reference?

A: We are glad to send samples for your inspection.
Standard samples can be free, but you may need to pay the express fees.

Q: How to confirm the quality with us before starting to produce?

1) We can provide samples and you can choose one or more, and then we make the quality according to that.
2) Send us your samples, and we will make it according to your quality.

Q: How to solve the quality problems after sales?

A: Take photos of the problems and send to us After we comfirm the problems, within three days, we will make a satisfied solution for you.

Q: What is the lead time?

A: 30-35days after sample confirmation
Q: Can you print our b

rand on the product?

A: Yes, Of course. It can make customer's brand logo.

Q: What about the price?

A: We promise the price we offer is lowest if same application, only to enlarge the market share.
