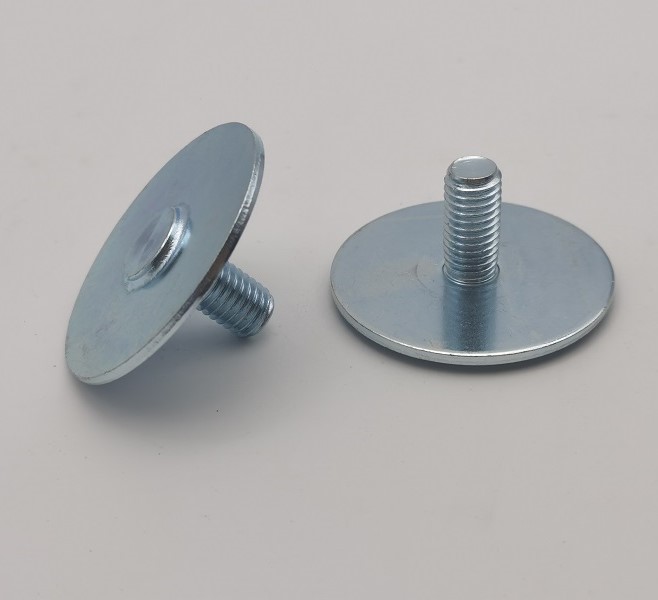

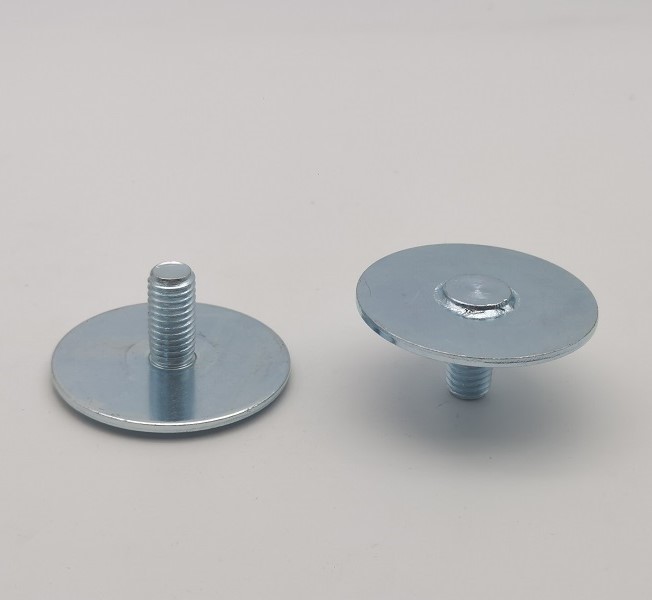

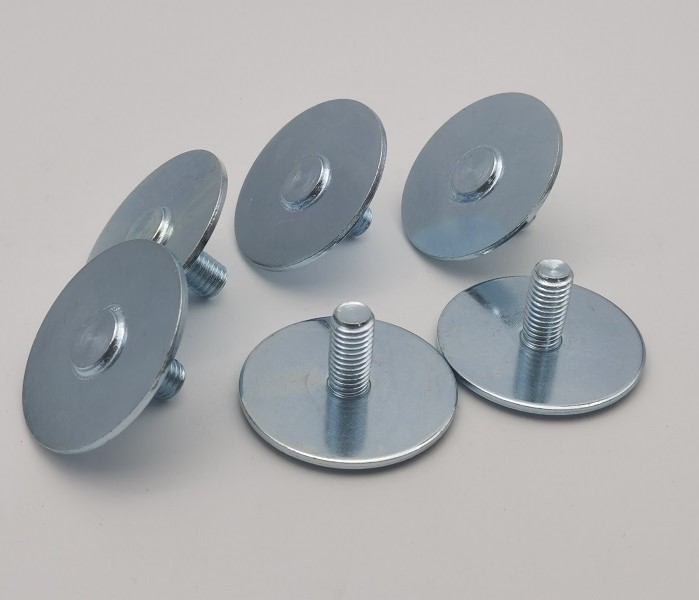

M10 Zinc Plated Threaded Base Plate Pin

JG manufactures the M10 Zinc Plated Threaded Base Plate Pin for industrial mounting, fastening and equipment assembly applications. This custom M10 threaded mounting component combines a wide stamped steel base plate with a precision external thread, creating a stable load-spreading connection for OEM assemblies.

The M10 Zinc Plated Threaded Base Plate Pin is manufactured from AISI 1008 low-carbon steel or an approved equivalent. The component has a 49.5 ±0.3 mm round base, a 2.2 mm plate thickness and an M10×1.5-6g external thread with a 20 mm threaded length. All dimensions are produced and inspected according to drawing M030192.

Manufacturing Process and Engineering Value

Production of the M10 Zinc Plated Threaded Base Plate Pin requires controlled blanking and stamping of the round plate, preparation of the threaded pin, thread rolling, secure mechanical joining, deburring, cleaning and clear zinc plating. Process control is focused on base-plate flatness, pin perpendicularity, joint security and consistent thread geometry.

The wide 49.5 mm base distributes the assembly load over a larger contact area. Accurate alignment between the threaded pin and stamped plate supports stable installation. After assembly and plating, the M10×1.5-6g thread is verified with calibrated GO/NO-GO gauges to prevent coating buildup from affecting fit.

Applications

• Industrial equipment mounting
• Sheet-metal and enclosure assemblies
• Machinery guards and access panels
• Automotive and transportation assemblies
• Custom OEM fastening systems

Clear Zinc Plating to ASTM B633

The M10 Zinc Plated Threaded Base Plate Pin receives clear zinc plating to ASTM B633 SC2 Type V. The coating provides a clean metallic appearance and corrosion protection while maintaining functional thread dimensions. Plating coverage, appearance and thread acceptance are inspected after finishing.

Technical Specifications

Quality Control and Batch Reports

Every batch of the M10 Zinc Plated Threaded Base Plate Pin is controlled through incoming-material verification, in-process dimensional checks and final inspection. Critical characteristics include plate diameter and thickness, threaded length, M10×1.5-6g gauge acceptance, pin alignment, joint integrity and finished surface condition.

• Material certificate with chemical composition and mechanical properties
• Strict mechanical property report for each production batch
• Dimensional inspection report according to drawing M030192
• Thread GO/NO-GO gauge inspection after plating
• Plating inspection report and batch traceability
• Joint pull-out, push-out or torque testing when specified by the approved control plan

Workmanship Requirements

The M10 Zinc Plated Threaded Base Plate Pin must be free from burrs and sharp edges. Finished parts must also be free from oil, solvent residue, corrosion, stains and other contamination. Visual inspection confirms a clean, uniform zinc-plated surface without damage that could affect assembly or appearance.

OEM Manufacturing from JG

JG supports prototypes, production samples and volume manufacturing of the M10 Zinc Plated Threaded Base Plate Pin. Engineering review covers manufacturability, tooling, thread control, joint verification, plating and inspection documentation. Send JG your drawing, annual demand and quality-document requirements for a quotation.
